Rental FloBoss 107 RTU Units

In Stock - Inventory item 11458

Product Snapshot

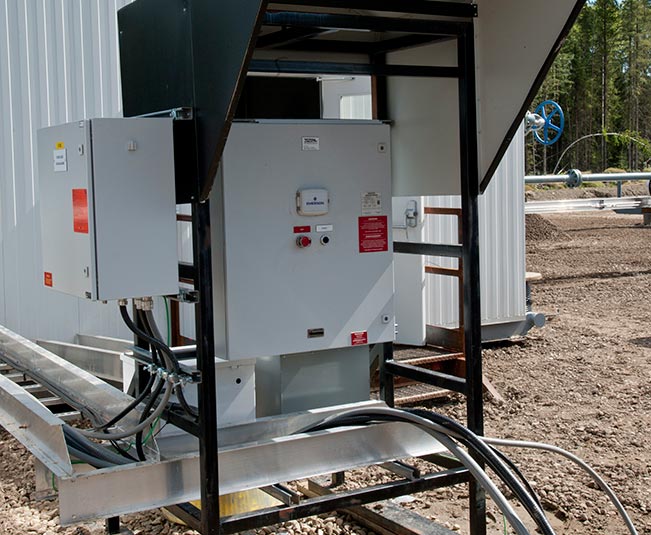

These "brains of the well site" are not a widely available rental product, but Roska has them, letting you cut out the lead times of a custom-ordered purchase. Roska RTUs are complete flow computers with multiple inputs and outputs, performing all AGA calculations, connecting to all separator sensing points. Enclosed in a heated and insulated housing and mounted on a stand for easy spacing, and facilitating a bolted-on radio for easy integration into your SCADA system. Roska RTUs can accommodate one through eight wells.



Features   Benefits

RTU Remote Terminal Unit RTU cabinet SCADA system with FloBoss 107 cl-I div-2
Customer Selectable Radio Flexibility to fit any field



Product Specifications

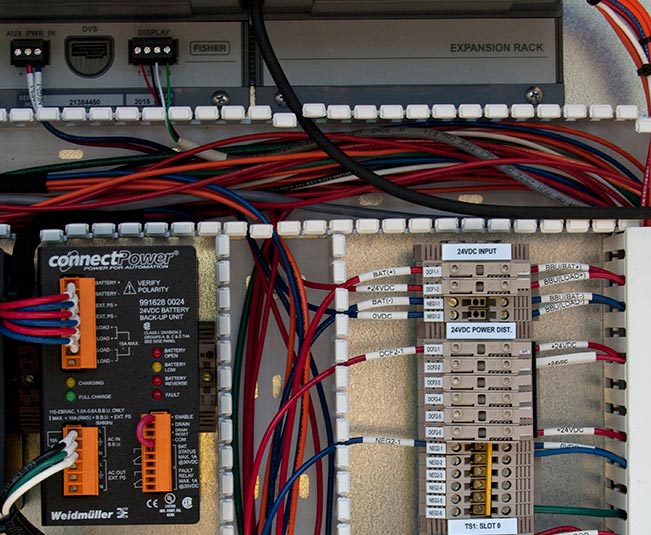

Our standard setup:

  • LCD touchscreen mounted in the door
  • ESD Push Button mounted on the door
  • Reset Push Button mounted on the door
  • Expansion Chassis
  • 3 communication ports (RS-485 & RS-232)
  • MVS Interface card (up to 6 MVS transmitters)
  • 4 Pulse Counter Inputs
  • 8 to 20 Digital Inputs
  • 8 to 14 Analog Inputs
  • 3 to 8 Digital Outputs
  • 3 to 4 Analog Outputs
  • A number of the inputs are dual configurable and can be changed to a different type
  • Separate insulated battery box with 2 batteries

Options:

  • Additional IO cards (3 slots free in the expansion rack) as required
  • Intertec 140 W Class 1 Zone 2 heater with Class 1 Zone 1 Thermostat (120 volt installations)
  • Solar Panels and charge controller (for 12 Volt installations)
