In stock - Inventory item 99999

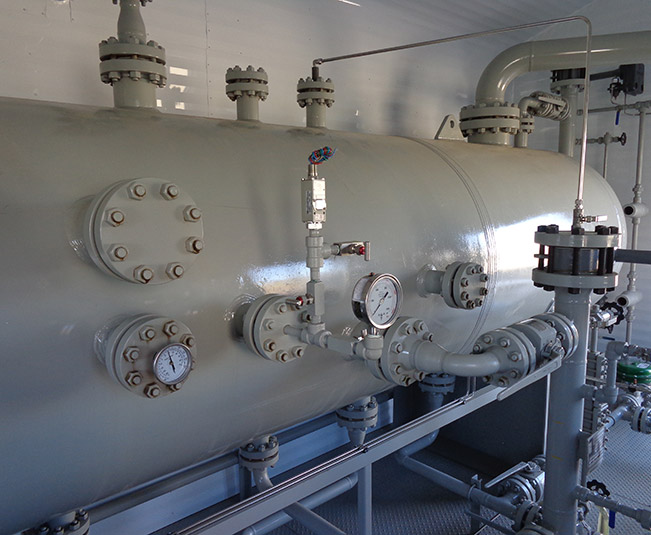

This high-capacity model is great for deployment as an inlet separator in a mid-sized gas plant, as a group separator for a large, high-rate multi-well pad, or as a test separator for a high-rate well. This approach allows individual wells to be tested, with production then allocated from all the wells in the group. Like all our separators the 48" X 15’ horizontal model is rated for sour service.
| Features | Benefits | |
|---|---|---|
| 48" diameter | For use as an inlet separator, test separator or group separator | |
| 3 Phase Fluids Separation and Flow Measurement | Accurate production evaluation | |
| Fisher Controls | Offers superior control reliability and inter-connectivity | |
| Sr Daniels Meter Run 6" cl600 | Enables high rate gas flow measurement at low pressure | |
| 4" ET Valve with C1 Controller | Reliable flow control | |
| Fuel Gas Scrubber | ||
| Twin 24"x24" Cata-Dyne Heaters | Improves operability in cold temperatures | |
| Design Pressure | 1,440 psi @ 130° F | |
| MDMT | -20° F | |
| Radiography | 100% | |
| PWHT | Yes | |
| Dimensions | 22'-2" L x 13'-4" W x 13'-5" H | |
| Weight | 44,900 lb | |
| Service | Sour |
