In stock - Inventory item various

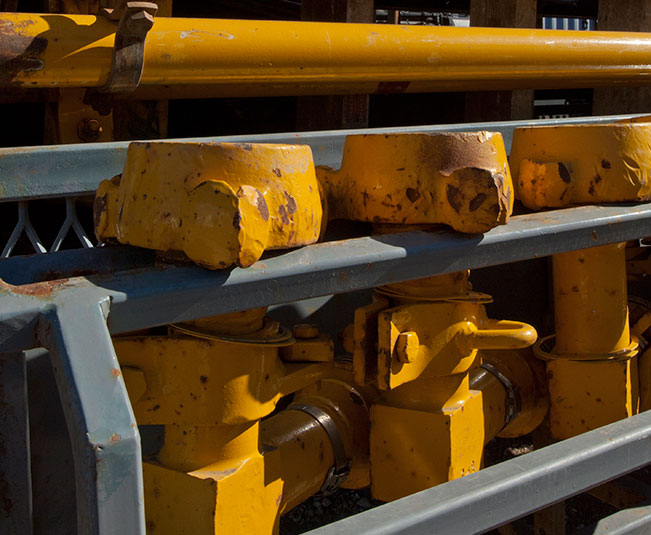

We provide only high-end hammer-union piping using Hiltap Fittings and metal-to-metal seals. These are registered pressure fittings with Canadian Registration Numbers, meeting facilities code, making our piping suited not only for testing applications but in a production setting. Our hammer union piping is rated for sour service and corrosive environments.
| Features | Benefits | |
|---|---|---|
| 2” & 3” Nominal Pipe Size | 3,000 psi and 5,000 psi pipe strings | |
| Inventory of components: straight pups, tees, elbows, adaptors, valves | ||
| Exclusive HilTap Connection Provides | Metal-to-metal seal | |
| Low temperature operation | ||
| CRN Canadian Registration Number | ||
| ASME code B31.3 compliant | ||
| Sour Service | For H2S service | |
| NACE MR0175 | ||
| Low Temperature | ||
| Design Pressure | 5,000 psi | |
| MDMT | -50° F | |
| Radiography | 100% | |
| PWHT | Yes | |
| Dimensions | To 20’ Long | |
| Weight | varies | |
| Service | sour |
